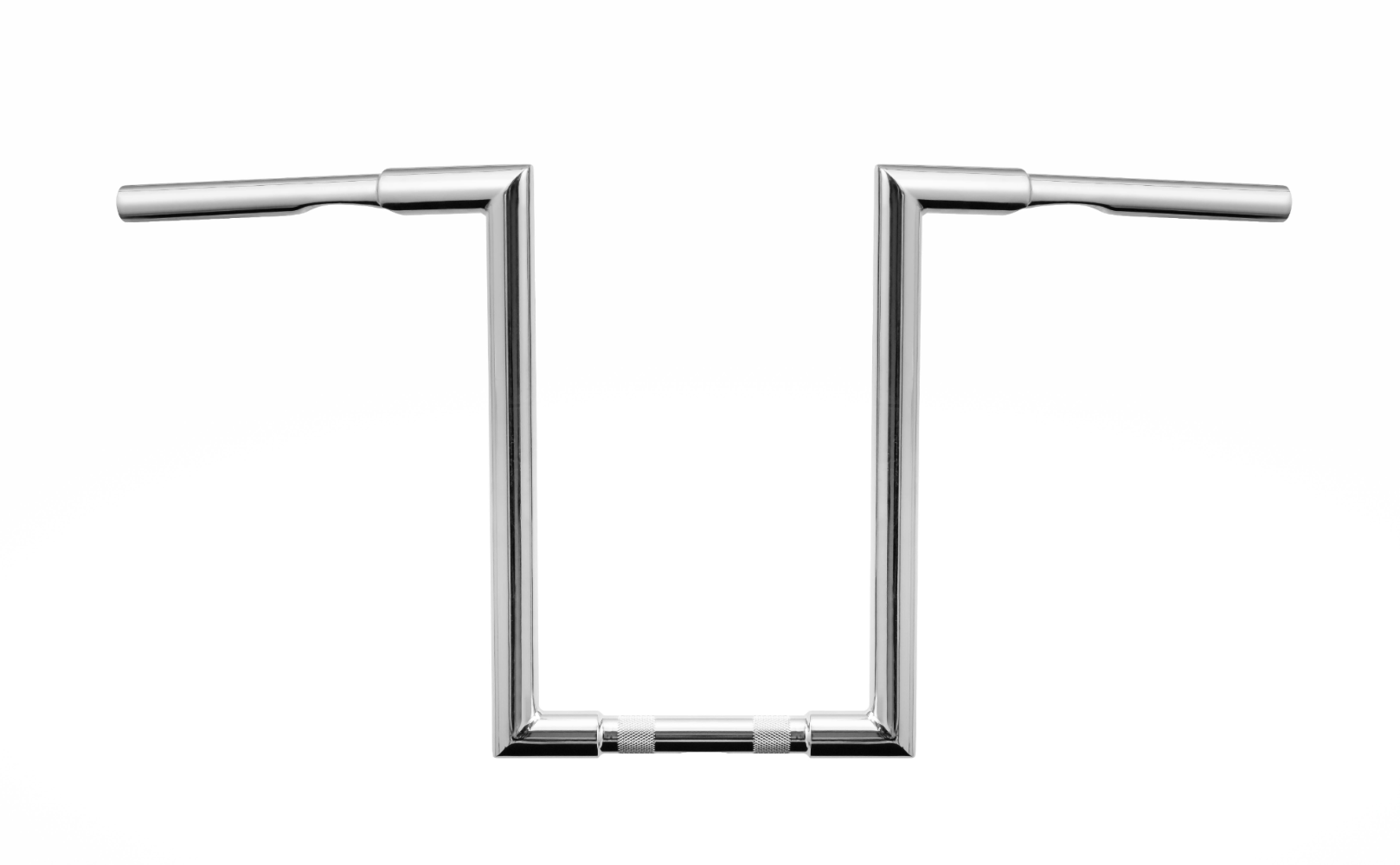

SKH-1024CH
Description：
- Electroplating, Electro-deposition, Baking painting, Powder Coating
- Material：STKM 11A
左右尚有資訊| SKH-1024CH | ||
|---|---|---|
| 14” | WIDTH | 32-1/4” |
| HEIGHT | 14-1/2” | |
| PULLBACK | 4-1/2” | |
| 16” | WIDTH | 32-1/4” |
| HEIGHT | 16-1/2” | |
| PULLBACK | 4-1/2” | |
| 18” | WIDTH | 32-1/4” |
| HEIGHT | 18-1/2” | |
| PULLBACK | 4-1/2” | |
| Symbol | Chemical Composition% | ||||
| C | Si | Mn | P | S | |
| STKM 11A | 0.12max | 0.35max | 0.60max | 0.040max | 0.040max |
| Tensile testing | Flattening test | Flexure test | |||||
|---|---|---|---|---|---|---|---|
| Material | Tensile strength (N/mm2) |
Yield point (N/mm2) |
Elongation% | Plate distance(H) | Angle of bend | Fillet Radius | |
| No11, No12 test | No4, No5 test specimen | ||||||
| STKM 11A | over 290 | - | over 35 | over 30 | 1/2D | 180º | 4D |
